The Homeowner’s Guide to Selecting the Best Gravel for French Drains

Sizing and Materials: What Is the Best Gravel for a French Drain?

Direct Answer: The best gravel for a French drain is washed #57 crushed stone (¾-inch to 1½-inch angular aggregate). It provides an optimal void ratio of 38%–45% for high-volume groundwater flow, interlocks structurally to prevent trench shifting, and remains free of fines to protect geotextile filter fabric from clogging.

When we design a perimeter drainage system or yard trench at Michigan Basements, aggregate selection is never an afterthought. Aggregate sizing directly controls the speed at which groundwater moves into your drainage line. The national standard for French drain construction is AASHTO #57 crushed stone, which consists of mechanically broken aggregate ranging between ¾ inch and 1½ inches in diameter.

To understand why aggregate size matters so much, you first have to understand how a French drain works. Water always follows the path of least resistance. When rain saturates soil, gravity pushes that subsurface water sideways and downwards into your excavated trench. If the trench is filled with tightly packed soil or dense gravel, water stalls out. But when the trench contains open-graded aggregate, water drops through the stone envelope instantly, filling the bottom of the trench and entering the lower perforations of the drain pipe to be carried safely away from your home.

If the aggregate is too small (under ½ inch), the air spaces between individual rocks become too narrow, slowing down drainage. If the aggregate is too large (over 2 inches), handling and leveling the stone around the pipe becomes difficult, risking structural gaps or unlevel pipe runs. Sizing stone right in that ¾-inch to 1½-inch sweet spot creates optimal hydraulic conditions for decades.

Why Washed #57 Crushed Stone Is the Best Gravel for a French Drain

Not all #57 stone is created equal. When ordering stone from a quarry or bulk material provider, you must specify washed aggregate. Washed #57 stone undergoes a high-pressure water rinse during processing to eliminate rock dust, silt, and superfines.

According to civil engineering standards and detailed research in this contractor guide to drainage stone selection, clean washed aggregate should maintain a fines content of less than 5% (and ideally under 1% passing the #200 sieve). Unwashed or screened-only stone carries fine rock powder clinging to every face. When buried in a high-moisture trench, groundwater washes those fine particles straight down to the bottom of the trench, where they settle into a paste, sealing off the pipe’s weeping holes and clogging the filter fabric within a few seasons.

Washed #57 stone also excels because of its angular interlock. Mechanically crushed aggregate features sharp, multi-faceted edges. When placed into a trench and lightly compacted, these angular edges interlock mechanically like puzzle pieces. This interlock prevents the gravel bed from shifting, rolling, or sagging under weight, ensuring your perforated pipe stays strictly at its intended slope even under heavy vehicle traffic or settling soil.

Evaluating Alternatives: Drain Rock, #4 Stone, and Recycled Concrete Aggregate

While clean #57 stone succeeds in over 95% of residential drainage installations, other acceptable aggregate alternatives exist depending on site conditions:

• #4 Crushed Stone (1½” to 2½”): Larger than #57 stone, #4 stone features expansive void spaces that allow exceptionally fast water transmission. It is ideal for heavy commercial applications or high-volume groundwater channels. However, because the individual rocks are larger, placing and leveling it around 4-inch perforated pipes requires more effort during DIY or residential installation.
• Drain Rock (1″ to 2″): A coarse aggregate category composed of larger crushed stone or unwashed washed gravel. It provides great water flow, but you must confirm that the batch is thoroughly washed before burying it.
• Recycled Concrete Aggregate (RCA): RCA consists of crushed, screened concrete from structural demolition. When washed and screened to ¾-inch sizing, clean RCA performs almost identically to virgin limestone or granite. Modern EPA MS4 regulations in many municipalities encourage RCA because it diverts landfill waste, and its performance in groundwater conveyance matches natural stone while often costing slightly less.

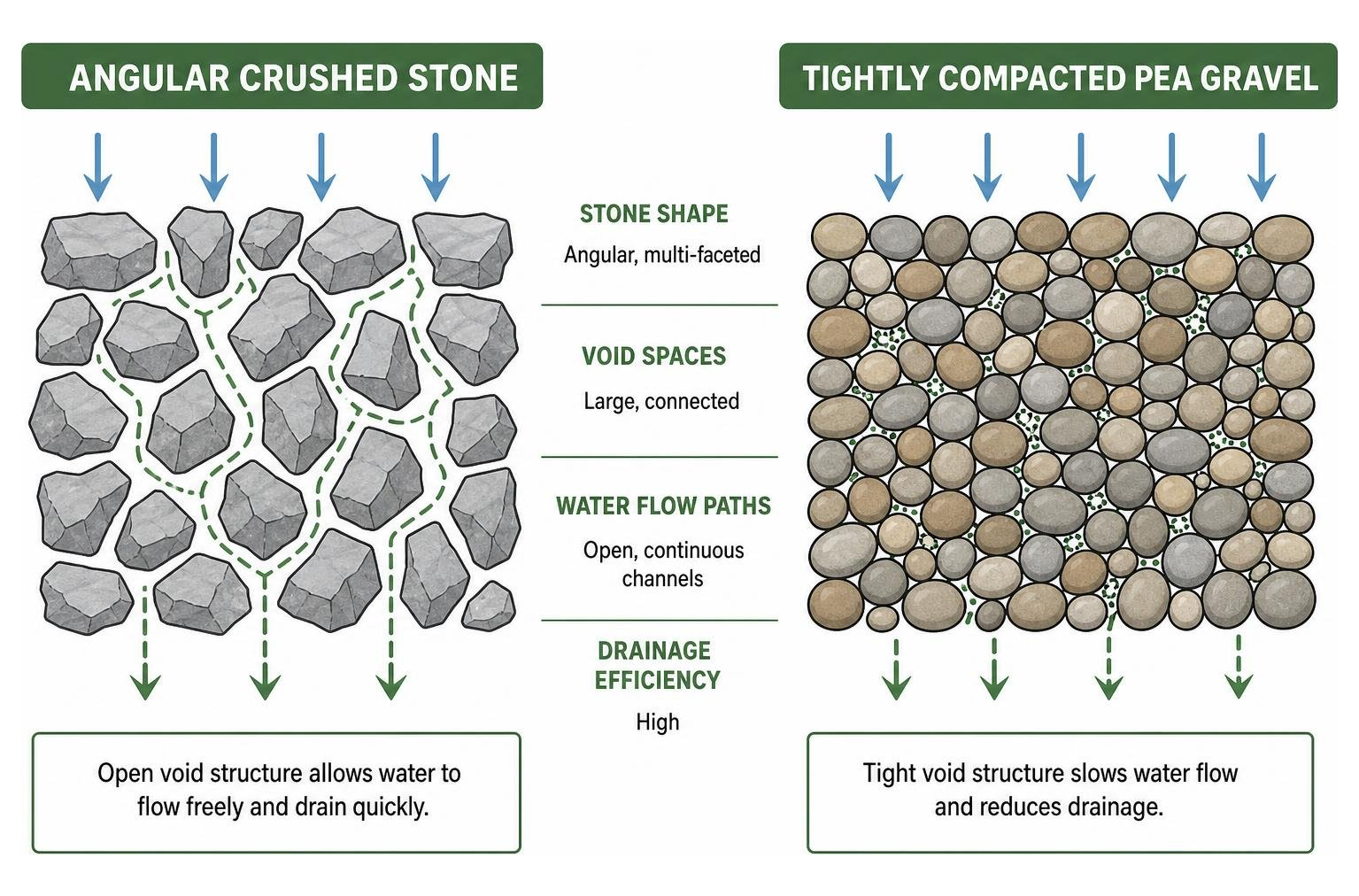

Hydrodynamics and Void Ratios: Angular Crushed Stone vs. Pea Gravel

The fundamental engineering metric that determines whether a French drain works is the void ratio—the percentage of open, unoccupied air space between the individual rocks in a filled trench.

When you pour clean #57 angular crushed stone into a trench, the irregular edges prevent the stones from fitting tightly together. This creates an open matrix with a 38% to 45% void ratio. In practical terms, out of every 10 cubic feet of gravel trench you dig, roughly 4 cubic feet consists of pure open air space ready to store and transport groundwater.

Void Ratio Science: Maintaining Maximum Flow Channels

Hydraulic conductivity measures how easily fluid moves through a porous medium. Because clean #57 stone offers up to a 45% void ratio, it provides virtually unimpeded pathways for water. Groundwater entering the aggregate envelope cascades downward to the pipe within seconds rather than minutes.

To dive deeper into aggregate flow characteristics, check out this complete guide to French drain aggregate choices. High void space acts as a internal reservoir during intense downpours. When cloudbursts deliver more water than a 4-inch pipe can discharge instantly, the 38–45% void space in the surrounding stone temporarily stores excess water underground, keeping it from pooling on your lawn or pushing against your foundation walls.

Why Pea Gravel and River Rock Lead to Early System Collapse

Homeowners often consider pea gravel or river rock because they are widely available and attractive. However, using smooth, rounded aggregate for subsurface functional drainage is one of the most expensive mistakes you can make.

Pea gravel consists of small, rounded pebbles ranging from ⅛ inch to ⅜ inch. Because pea gravel is small and round, it acts like tiny ball bearings. Under soil compaction, backfill pressure, or foot traffic, the smooth stones roll past one another, tightly nesting together. This reduces the trench void ratio down to a restrictive 15% to 25%.

Furthermore, pea gravel is small enough to wash directly through the perforations of standard drainage pipe, partially filling the pipe interior with sediment. Smooth river rock (1 to 3 inches) has a slightly higher void ratio than pea gravel, but its rounded shape lacks angular structural interlock, making it prone to shifting and settling over time.

Aggregate Type	Particle Shape	Average Void Ratio	Flow Speed	Structural Stability	System Longevity
Clean Washed #57	Angular / Crushed	38% – 45%	Extremely Fast	Excellent (Interlocking)	25+ Years
#4 Crushed Stone	Angular / Crushed	35% – 42%	Extremely Fast	Excellent (Interlocking)	25+ Years
Washed RCA	Angular / Fractured	35% – 42%	Fast	Good	20+ Years
River Rock	Smooth / Rounded	25% – 30%	Moderate	Poor (Shifts under weight)	5–10 Years
Pea Gravel	Smooth / Rounded	15% – 25%	Slow	Very Poor (Compacts)	2–5 Years
Crusher Run	Mixed Fines & Stone	<10%	Clogged / Impermeable	Compacts solid	Fails immediately

As shown above, pea gravel and unwashed stone options drastically restrict water movement. Up to 40% of early French drain failures occur because smooth or undersized gravel compacted and trapped fine silt inside the trench.

Essential Trench Specifications: Dimensions, Slope, and Geotextile Fabric Integration

Choosing the best gravel for a French drain is only half the battle. If the trench isn’t properly proportioned, sloped, and sealed against soil intrusion, even the best washed #57 aggregate won’t prevent drainage failure.

Trench Sizing and the 1% Minimum Slope Rule

For standard residential yard or foundation water management, a French drain trench should be excavated between 18 to 24 inches deep and 8 to 12 inches wide. If you are installing a system in heavy soil, review our guide on how deep a French drain should be to calculate exact depths for your foundation.

Gravity drives French drain flow. To ensure groundwater moves toward your discharge outlet rather than sitting stagnant in the pipe, you must maintain a continuous minimum downhill grade of 1%—which equals 1 foot of drop for every 100 linear feet of trench (or 1 inch of fall per 8 to 10 feet).

Follow our step-by-step methodology on how to install a French drain in 7 easy steps to set your trench slope correctly using a laser level or transit line before pouring in your aggregate base layer.

The Non-Woven Geotextile Envelope: Preventing Sediment Clogging

Skipping filter fabric is the single most destructive shortcut in drainage construction. Over time, hydrostatic pressure pushes surrounding dirt and organic silt into the spaces between trench rocks. Without a barrier, native soil completely clogs the 38-45% void space of your clean #57 stone within 5 to 10 years.

However, you cannot use cheap woven weed-barrier fabric. Woven landscape fabric acts like plastic sheeting, preventing water from penetrating fast enough. Instead, you must specify a non-woven geotextile fabric, preferably an AASHTO M288 Class 2 fabric with an Apparent Opening Size (AOS) tailored to filter fine silt while permitting maximum water throughput (over 400 liters per minute per square meter).

We construct every drain using the “burrito wrap” technique:

1. Unroll the non-woven geotextile fabric into the empty excavated trench, leaving 10 to 12 inches of fabric overhang on both top edges.
2. Pour a 2-to-3-inch base bedding layer of washed #57 stone along the fabric-lined bottom.
3. Set your perforated 4-inch pipe on top of the base stone, making sure the weeping holes face DOWN (so rising groundwater enters the pipe from below without washing top debris inside).
4. Fill the trench with washed #57 stone to within 4 to 6 inches of the surface, surrounding the pipe completely.
5. Fold the side fabric overhangs over the top of the gravel layer, overlapping the seams by at least 6 to 12 inches.
6. Backfill the top with soil, sand, or decorative stone.

This full geotextile envelope seals your aggregate matrix away from surrounding soil, ensuring native silt never enters the void spaces.

Calculating Gravel Quantities, Material Costs, and Failure Prevention

Under-ordering aggregate stalls your installation project mid-dig, while over-ordering leaves you with tons of unwanted stone dumped on your driveway. Fortunately, calculating the required aggregate volume is straightforward math.

Step-by-Step Gravel Volume and Tonnage Calculation

To calculate the exact volume of washed #57 aggregate needed for your trench, follow these steps:

1. Find Trench Volume in Cubic Feet: Multiply Trench Length (ft) × Trench Width (ft) × Gravel Depth (ft).
2. Convert to Cubic Yards: Divide total cubic feet by 27 (since 1 cubic yard = 27 cubic feet).
3. Subtract Pipe Displacement: A 4-inch perforated drain pipe displaces about 0.2 to 0.3 cubic yards of volume per 50 linear feet. Subtract this from your total.
4. Add a 10% to 15% Compaction & Settling Buffer: Add 10-15% extra material to account for aggregate compaction, trench irregularity, and settling.

Example Calculation: Assume a 50-foot long trench, 1 foot wide, filled with gravel to a depth of 1.5 feet (18 inches):

• $50 text{ ft} times 1 text{ ft} times 1.5 text{ ft} = 75 text{ cubic feet}$
• $75 div 27 = 2.78 text{ cubic yards}$
• Subtract pipe displacement: $2.78 – 0.25 = 2.53 text{ cubic yards}$
• Add 12% overage buffer: $2.53 times 1.12 = mathbf{2.83 text{ cubic yards}}$

Because suppliers usually sell bulk gravel by weight, convert cubic yards to tons. Clean #57 stone weighs approximately 1.35 tons per cubic yard (or 2,700 lbs/yd³).

• $2.83 text{ cu yds} times 1.35 text{ tons/yd} = mathbf{3.82 text{ tons of aggregate}}$

Bulk washed #57 crushed stone generally costs between $38 and $62 per ton delivered, making raw aggregate costs for a 50-foot project range between $150 and $240.

Selecting the Best Gravel for a French Drain in Heavy Clay Soils

In regions like Southeast Michigan (including Oakland, Macomb, and Wayne counties), heavy, sticky clay soil is extremely common. Clay soil expands when wet, drains poorly, and releases microscopic silt particles that quickly blind inferior filter fabrics.

When installing a French drain in clay soil:

• Widen the Trench: Increase trench width from 8–10 inches up to 12 to 18 inches wide. A wider aggregate footprint gives slow-moving clay water more surface area to percolate into the stone envelope.
• Never Skip Washed #57 Stone: In dense clay, using pea gravel or dirty aggregate guarantees system failure within 24 months. Washed #57 stone provides the high void capacity required to hold water while clay slowly absorbs excess moisture.
• Work with Specialists: If you’re managing complex yard flooding or wet basement conditions in Michigan’s tough clay soils, consult a professional using our yard drainage contractor guide.

Frequently Asked Questions About French Drain Gravel

We structured these direct Q&A answers to provide precise, technical information for quick reference.

What is the best gravel for a French drain?

The best gravel for a French drain is washed #57 crushed stone (¾-inch to 1½-inch crushed aggregate). As specified by Michigan Basements, washed #57 stone provides an optimal void ratio (38%–45%) for rapid groundwater flow, interlocking stability to protect pipe slope, and clean surfaces free of fine silt that causes trench clogging.

Should French drain gravel be washed or screened?

French drain gravel must always be washed, not merely screened. Screened aggregate is passed through mechanical wire decks to segregate stone sizes, but it leaves fine rock dust and mineral powder clinging to the stone surface. When buried underground, moisture washes this dust to the bottom of the trench, forming a dense sludge that clogs pipe perforations and blinds geotextile fabric. Washed aggregate undergoes high-pressure water rinses during processing to remove fine particles, leaving a clean stone surface with less than 5% fines.

Can I use recycled concrete aggregate (RCA) in a French drain?

Yes, clean washed ¾-inch Recycled Concrete Aggregate (RCA) is an effective, eco-friendly alternative to virgin crushed limestone or granite. When properly crushed, washed, and screened, RCA maintains an open void ratio (35–42%) similar to natural #57 crushed stone. It provides reliable drainage performance and structural stability while keeping demolition materials out of local landfills. In many municipalities, choosing washed RCA also qualifies homeowners for local EPA MS4 stormwater management incentive rebates.

How much gravel is needed for a standard 50-foot French drain?

A standard 50-foot residential French drain (12 inches wide by 18 inches deep) requires approximately 2.5 to 3.0 cubic yards of washed #57 aggregate, which converts to roughly 3.4 to 4.0 tons of stone. This estimate accounts for a 2-inch base bedding layer beneath a 4-inch perforated pipe, complete surrounding fill, a 4-inch top cap clearance, pipe volume displacement deduction, and a standard 10–15% buffer for material settling.

Conclusion

A French drain is an underground gravity system that relies on physics to protect your yard and foundation. You can buy top-tier perforated pipe and high-end non-woven fabric, but if you backfill your trench with pea gravel, river rock, or dirty crusher run, your system will inevitably fail.

Choosing clean, washed #57 angular crushed stone guarantees a maximum void ratio of 38–45%, providing fast water movement and rock-solid trench stability. When properly encased in a non-woven geotextile envelope and laid along a true 1% slope, washed #57 stone creates a system that will quietly protect your home for 25 to 50 years with zero maintenance required.

At Michigan Basements, we bring family-owned expertise, meticulous workmanship, and no-cost inspections to every waterproofing project across Southeast Michigan. Whether you’re fighting surface standing water or foundation moisture, we can help you build a system designed to handle our state’s toughest freeze-thaw cycles. Explore our custom Michigan Basements drain tile systems today, or reach out to our team to schedule your free inspection and drain planning consultation!
