Stop Leaks Before They Start with These Top Exterior Foundation Coatings

Choosing the Right Exterior Foundation Coating for Your Home

An exterior foundation coating is a protective barrier applied directly to below-grade concrete or masonry walls to stop water intrusion, resist subterranean moisture, and prevent structural damage from freeze-thaw cycles.

The four primary exterior foundation coating options compare as follows:

• Liquid Rubber (Elastomeric): The top choice for long-term waterproofing. It cures into a seamless, flexible membrane with 900% to 1,200% elasticity to bridge shifting foundation cracks.
• Peel-and-Stick Sheet Membranes: Heavy-duty rubberized asphalt sheets that provide a factory-guaranteed thickness (typically 60 to 90 mils), though seams require careful priming and sealing.
• Asphalt-Based Emulsions: A low-cost solution best suited for dampproofing against soil moisture vapor, but prone to becoming brittle and cracking under active hydrostatic water pressure.
• Cementitious Sealers: Rigid hydraulic cement formulations that bond tenaciously to block or poured walls, offering moisture resistance but no flex when foundations move.

While traditional asphalt damp-proofing only slows moisture absorption, a true elastomeric or self-adhered waterproofing membrane actively blocks standing groundwater. To evaluate costs for your specific property, Michigan Basements provides free inspections and an online foundation waterproofing pricing tool.

I’m Dominic Hesano, founder of Michigan Basements, where I’ve spent years diagnosing wet basements and applying every type of exterior foundation coating across Southeast Michigan. That hands-on field experience showed me which materials endure brutal freeze-thaw cycles and which ones break down under soil pressure.

Related content about exterior foundation coating:

• basement waterproof coating
• foundation waterproof coating
• waterproofing basement walls

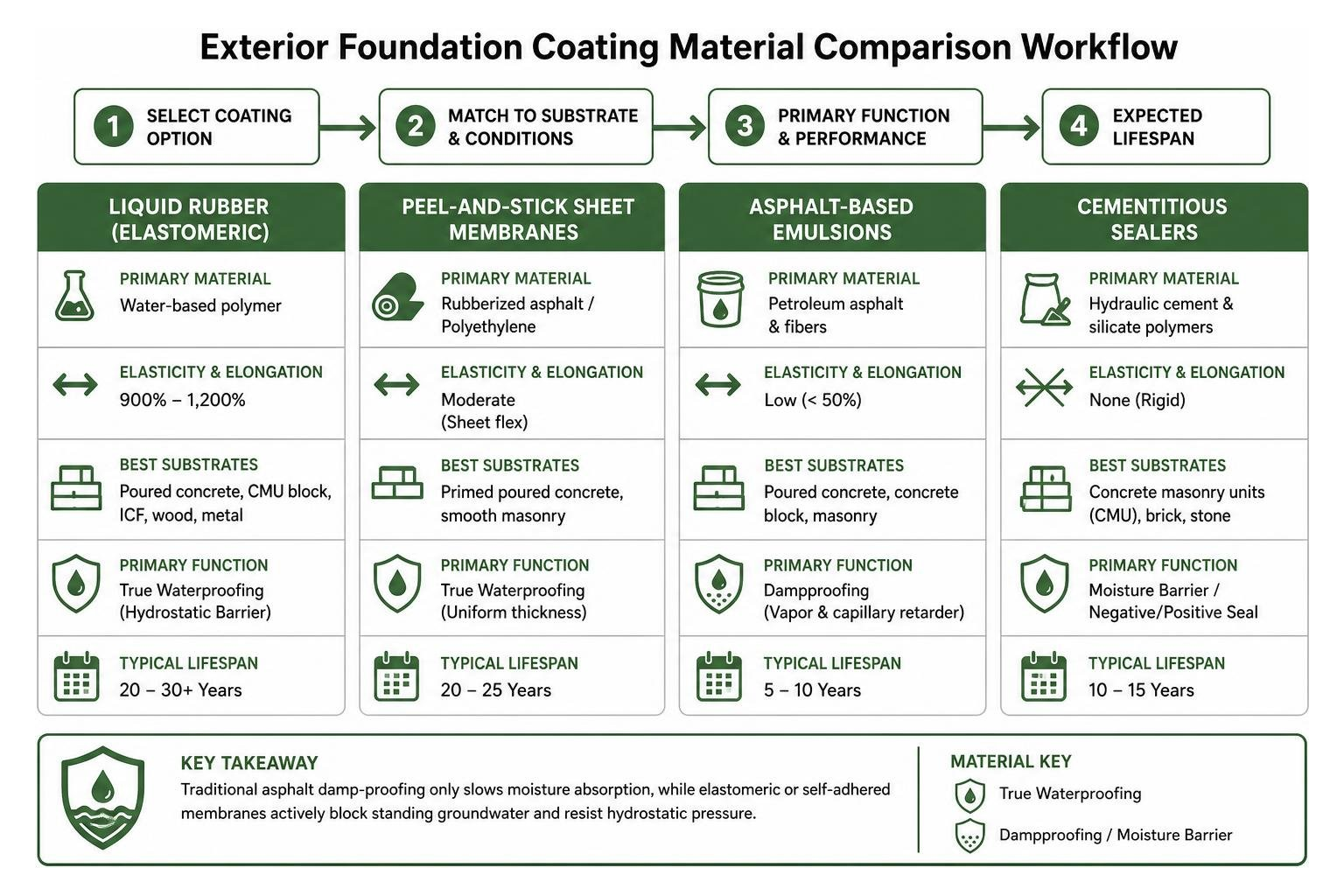

Types of Exterior Foundation Coating Options Compared

Selecting the right barrier requires balancing elasticity, water head resistance, substrate compatibility, and ease of application. When we evaluate foundations across Oakland County, Macomb County, and Wayne County, we examine the structural demands of the substrate before matching it with an appropriate material. For an in-depth look at surface prep and application fundamentals, explore The Ultimate Guide to Sealing Concrete and Masonry Basement Walls.

Coating Type	Primary Material Base	Elasticity & Elongation	Best Substrates	Primary Function	Typical Lifespan
Liquid Rubber	Water-based polymer	900% – 1,200%	Poured concrete, CMU block, ICF, wood, metal	True Waterproofing (Hydrostatic Barrier)	20 – 30+ Years
Peel-and-Stick	Rubberized asphalt / Polyethylene	Moderate (Sheet flex)	Primed poured concrete, smooth masonry	True Waterproofing (Uniform thickness)	20 – 25 Years
Asphalt Emulsion	Petroleum asphalt & fibers	Low (< 50%)	Poured concrete, concrete block, masonry	Dampproofing (Vapor & capillary retarder)	5 – 10 Years
Cementitious	Hydraulic cement & silicate polymers	None (Rigid)	Concrete masonry units (CMU), brick, stone	Moisture Barrier / Negative/Positive Seal	10 – 15 Years

Liquid Rubber Elastomeric Exterior Foundation Coating

Water-based elastomeric liquid rubber represents the highest performance standard for below-grade sealing. Once rolled or sprayed onto foundation walls, it cures into a continuous, seamless rubber jacket.

Because it boasts between 900% and 1,200% elongation, liquid rubber expands and contracts effortlessly as the surrounding soil shifts during deep seasonal freeze-thaw cycles in Southeast Michigan.

Key benefits of liquid rubber elastomeric barriers include:

• Monolithic Protection: Eliminates the laps, seams, and edge joints where sheet membranes can leak.
• Active Crack Bridging: Stretches across hairline settlement fractures without tearing.
• Substrate Versatility: Adheres directly to poured concrete, cinder block, brick, and Insulated Concrete Forms (ICF) without degrading foam insulation.
• Eco-Friendly Safety: Water-based formulations carry very low VOC levels (often under 25 g/L), making them non-flammable and safe to handle in residential neighborhoods from Bloomfield Hills to Ann Arbor.

When applied above ground level, some liquid rubber coatings are UV sensitive and require an elastomeric topcoat to maintain long-term integrity against sunlight exposure.

Asphalt-Based Exterior Foundation Coating and Dampproofing

Asphalt-based coatings remain widely used in basic new construction as a cost-conscious dampproofing measure. These formulations come in solvent-based cutbacks or water-based asphalt emulsions, often blended with cellulose reinforcing fibers and polymers.

Products such as Henry 101 Non-Fibered Foundation Coating: Long-Lasting Dampproofing Protection and Gardner® Foundation & Roof Coating are cold-applied liquid asphalt solutions designed to penetrate porous masonry surfaces. Similarly, Black Jack® Foundation & Roof Coating – Black Jack Coatings provides a thin-bodied, light brush-grade layer to block capillary moisture in block foundations, underground wood footings, and buried metal piping.

For heavier applications, trowel-grade alternatives like Henry 793 Premium Trowel-Grade Foundation Coating: Superior Dampproofing Protection combine asphalt with mineral stabilizers to seal structural assemblies at thicknesses up to 90 mils. Furthermore, products conforming to standards such as Foundation & Roof Coating deliver reliable ASTM D-1227 moisture barrier performance.

However, traditional asphalt coatings are not flexible waterproofing membranes. Over time, volatile solvents evaporate, causing the asphalt to become brittle, oxidize, and crack under dynamic ground movement.

Self-Adhered Peel-and-Stick Sheet Membranes

Self-adhering peel-and-stick membranes consist of thick rubberized asphalt laminated to a high-density polyethylene (HDPE) film backing. These heavy sheets provide one major benefit: guaranteed, factory-controlled mil thickness (typically 60 mils) across every square inch of the wall.

Peel-and-stick membranes require precise installation standards:

• Mandatory Primer: Concrete masonry must be fully coated with an adhesive primer; skipping primer leads to delamination and peeling.
• Detailed Seams: Sheets must overlap by a minimum of 2.5 to 3 inches, with all edges rolled firmly and sealed with compatible mastic.
• Temperature Restrictions: Adhesives lose tackiness in cold weather, requiring specialized low-temperature formulations when working late in the season.

While peel-and-stick provides strong puncture resistance, accidental wrinkles or unsealed seams can channel water behind the membrane, trapping moisture against the foundation.

Cementitious Waterproofing Formulations

Cementitious coatings combine Portland cement, silica sand, and active polymer bonding agents. When mixed with water or an acrylic modifier, the slurry is brushed or troweled onto concrete masonry to form a rigid mineral barrier.

Cementitious mixtures bond directly to the masonry matrix, filling open pores and preventing water seepage on both positive (exterior) and negative (interior) sides. They are impervious to soil chemicals and cannot delaminate like flexible films.

However, cementitious coatings have zero elongation. If your foundation settles even a fraction of an inch, the rigid coating will crack along with the concrete, allowing groundwater to enter.

Key Performance Factors: Dampproofing vs. Full Waterproofing

Understanding the performance difference between dampproofing and waterproofing protects your basement from subterranean water intrusion. For a deeper breakdown of moisture management, read What is Basement Waterproofing? and review Basement Waterproof Coatings – Your Shield Against the Subterranean Sog.

• Dampproofing: A vapor-retardant barrier designed to stop capillary action (soil moisture absorbing into porous concrete). It is not engineered to withstand hydrostatic pressure or bridge dynamic settlement cracks.
• Waterproofing: A continuous, impermeable elastomeric membrane that actively resists hydrostatic head pressure from rising water tables while expanding over settling structural cracks.

Hydrostatic Head Pressure and Water Drainage Systems

No foundation coating—regardless of quality—is designed to withstand perpetual hydrostatic pressure alone. When saturated clay soils hold water against a basement wall, the lateral pressure forces water through microscopic pinholes or cold joints.

A complete exterior water management system includes:

1. Waterproofing Membrane: The monolithic barrier stopping water contact.
2. Dimpled Drainage Board: Creates an air gap relief plane along the wall, relieving hydrostatic pressure and directing water downward.
3. Footing Drain Tile: Perforated pipe enveloped in washed round gravel and wrapped in geotextile filter fabric to route water away to daylight or an internal sump basin.

Homeowners dealing with active ground movement can also review Stop the Seep and Fix Your Cracked Basement Floor Today and read How to Waterproof a Basement Wall to evaluate comprehensive drainage options.

Tensile Strength, Elasticity, and Chemical Durability

Subsurface soils contain varying concentrations of road salts, fertilizers, sulfur, and acidic compounds. Exterior foundation coatings must provide chemical resistance alongside physical durability.

Elastomeric polymers and heavy rubberized asphalt sheets resist decomposition from soil acidity and biological attack. High tensile strength ensures the membrane withstands backfill settlement friction without tearing away from the concrete.

Step-by-Step Exterior Foundation Coating Application

Applying below-grade coatings requires meticulous preparation. Missing a single step in cleaning or priming can cause delamination. To see how these phases come together on-site, check out How to Waterproof a Basement from the Outside.

Surface Preparation and Structural Repair

A coating is only as sound as the substrate underneath. Surface preparation follows these critical steps:

• Excavation & Safety: Trench walls must be benched or shored to ensure safe working conditions along the entire footing perimeter.
• Deep Cleaning: Remove form release oils, dirt, and efflorescence using a pressure washer and trisodium phosphate (TSP) cleaner.
• Grinding Seams: Grind down concrete form panel ties and sharp fins flush using a diamond cup wheel on an angle grinder.
• Crack Repair: Chase and patch cracks up to 5/8 inch using trowel-grade elastomeric sealants or rapid-setting hydraulic mortar.
• Footing Fillet (Cove): Install a 45-degree mortar cant strip or elastomeric cove fillet at the wall-to-footing joint to prevent right-angle water pooling.

Proper Coating Application and Mil Thickness

Whether using an airless sprayer (with a heavy-duty 0.021-inch tip or larger), a roller, or a trowel, coating thickness must be verified using a wet mil gauge.

• Priming: Apply the manufacturer-specified primer across the clean masonry to lock down micro-dust and maximize membrane adhesion.
• Cross-Hatch Coats: Apply fluid membranes in two cross-directional coats (vertical, then horizontal) to ensure pinhole-free coverage.
• Target Mil Thickness: Aim for a cured dry film thickness (DFT) between 60 and 90 mils for fluid membranes.
• Penetrations & Corners: Reinforce pipe penetrations, inside corners, outside corners, and expansion joints with self-adhesive mesh tape embedded in heavy trowel mastic.

For additional insight into selecting specialized coatings, see Foundation Waterproofing Coatings – Keeping the Dampness Out of Your Dirt.

Backfill Protection and Thermal Insulation

Once the coating cures (typically 24 to 48 hours depending on humidity), it must be protected against puncture:

• Protection Layers: Install heavy dimpled drainage sheets, grooved rigid XPS insulation boards, or heavy asphalt-saturated protection felt over the cured membrane.
• Thermal Performance: Exterior rigid foam insulates the concrete, keeping the dew point outside and reducing interior condensation.
• Careful Backfilling: Backfill the first 12 to 24 inches above the footing with washed crushed stone before backfilling with native soil, keeping sharp rocks from gouging the barrier.

Frequently Asked Questions About Foundation Waterproofing

How long does an exterior foundation coating typically last?

A high-performance elastomeric liquid rubber or peel-and-stick membrane typically lasts 20 to 30+ years when properly installed and protected with dimpled drainage boards and functional footing drains. In contrast, basic asphalt dampproofing typically degrades within 5 to 10 years as volatile oils leach into surrounding soils during freeze-thaw cycles.

Can I apply an exterior foundation coating myself or hire a professional?

While minor above-grade touch-ups can be DIY projects, full below-grade exterior foundation coating requires professional execution. Contractors like Michigan Basements provide specialized excavation equipment, proper trench shoring, commercial spray rigs, mil-thickness calibration, and exterior drainage tile integration across Southeast Michigan homes to ensure lasting structural protection and comprehensive warranties.

Is dampproofing the same as waterproofing a basement wall?

No, dampproofing and waterproofing serve distinct purposes. Dampproofing retards capillary moisture vapor transmission through concrete pores under non-hydrostatic soil conditions. Waterproofing establishes an elastomeric, monolithic barrier capable of bridging moving cracks and blocking standing groundwater under active hydrostatic head pressure. If you are struggling with active seepage, learn How to Seal a Wet Basement for immediate containment strategies.

Conclusion: Protecting Your Home with Long-Term Foundation Solutions

A dry, structurally sound home starts with reliable exterior moisture protection. Choosing a seamless elastomeric coating combined with proper perimeter drainage stops leaks before they start, protecting your living space and preserving your property value.

At Michigan Basements, we provide professional Basement Waterproofing Repair and full exterior water management across Southeast Michigan, including Birmingham, Rochester Hills, Troy, Novi, Farmington Hills, and Sterling Heights. Learn more about Our Services and take advantage of our no-cost inspections and transparent pricing tool to plan your foundation protection today.
